Decompose RGB and YUV in color?

[Reel.Deel]

Hi everyone,

After reading the YCbCr page on Wikipedia there's an illustration that shows RGB and YUV decoposed but with color. I thought it was kinda neat and tried doing it with AviSynth.
I know there is ShowRed/Green/Blue and UtoY/VtoY but the output is greyscale. I started tinkering and came up with something but I'm not completely sure if it's correct?

Source for this little experiment:


--------

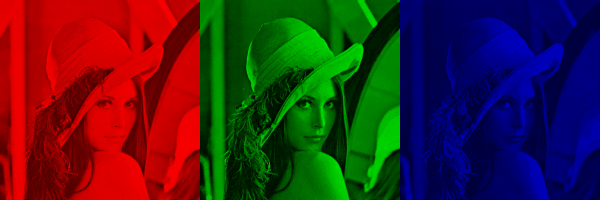

For RGB:

# Source
ImageSource("4.2_04.png", end=0)

# Processing
R = ShowRed("Y8")
G = ShowGreen("Y8")
B = ShowBlue("Y8")

blank = BlankClip(R, color_yuv=$000000)

R2 = MergeRGB(R, blank, blank, pixel_type="RGB24")
G2 = MergeRGB(blank, G, blank, pixel_type="RGB24")
B2 = MergeRGB(blank, blank, B, pixel_type="RGB24")

StackHorizontal(R2, G2, B2)

--------

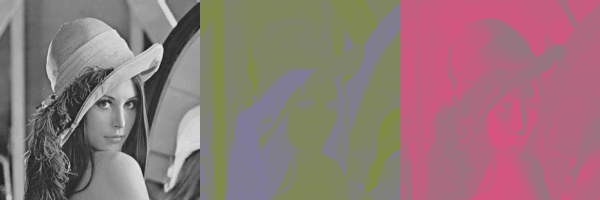

For YUV:

# Source
ImageSource("4.2_04.png", end=0)
ConvertToYV24(matrix="PC601")
o = last

# Processing
U = UToY8()
V = VToY8()
Blank = BlankClip(U, color_yuv=$808080)

Y = MergeRGB(o,o,o, pixel_type="RGB24")
U2 = YToUV(U, Blank, Blank)
V2 = YToUV(Blank, V, Blank)

UV = StackHorizontal(U2,V2).ConvertToRGB24(matrix="PC601")

StackHorizontal(Y, UV)

[Wilbert]

Just use RGBAdjust (setting r=g=0 for showing blue for example) and use ColorYUV (setting gain_y=-1, cont_u=-1 for showing v).

[EncodedMango]

That's really neat!
Might I ask what you're running the script in for the output or if you're using ImageWriter?

EDIT:
I stacked them vertically and used ImageWriter to output to bmp.
ImageWriter("%RGB.bmp")
ImageWriter("%YUV.bmp")

[raffriff42]

Nice, here's a little variation:

## (requires MaskTools)

r = Last.ConvertToRGB24
ConvertToYV24(matrix="PC.601")
o = last

U = UToY8()
V = VToY8()
Blank = BlankClip(U, color_yuv=$808080)

UA = U.mt_lut(("(x < 128) ? 128 : x").mt_polish)
UB = U.mt_lut(("(x > 128) ? 128 : x").mt_polish)
VA = V.mt_lut(("(x < 128) ? 128 : x").mt_polish)
VB = V.mt_lut(("(x > 128) ? 128 : x").mt_polish)
Y = MergeRGB(o, o, o, pixel_type="RGB24")

U2A = YToUV(UA, Blank, Blank)
U2B = YToUV(UB, Blank, Blank)
V2A = YToUV(Blank, VA, Blank)
V2B = YToUV(Blank, VB, Blank)

UVA = StackHorizontal(U2A._sub("U+"), V2A._sub("V+"))
UVB = StackHorizontal(U2B._sub("U-"), V2B._sub("V-"))

StackVertical(
\  StackHorizontal(r, UVA.ConvertToRGB24(matrix="PC.601")),
\  StackHorizontal(Y, UVB.ConvertToRGB24(matrix="PC.601")))
return Last

function _sub(clip C, string msg) {
    return C.Subtitle(msg, align=5, size=C.Height/8, text_color=$c0c0c0)
}

[wonkey_monkey]

Aside: I've often wondered why that image is still widely used in tests; it's washed out, soft, and only features a narrow range of colour.

[Reel.Deel]

Originally Posted by Wilbert

Just use RGBAdjust (setting r=g=0 for showing blue for example) and use ColorYUV (setting gain_y=-1, cont_u=-1 for showing v).

Thanks for the response Wilbert. RGBAdjust works as expected but with ColorYUV(gain_y=-1, cont_u=-1) the output still looks the same as the input.

Originally Posted by sidspyker

That's really neat!
Might I ask what you're running the script in for the output or if you're using ImageWriter?

I usually used AvsPmod or the good ol' VirtualDub but ImageWriter works just as well.

Originally Posted by raffriff42

Nice, here's a little variation:

Thanks raffriff42, that's nice.

Originally Posted by davidhorman

Aside: I've often wondered why that image is still widely used in tests; it's washed out, soft, and only features a narrow range of colour.

Yeah I agree that picture is dull.


---------

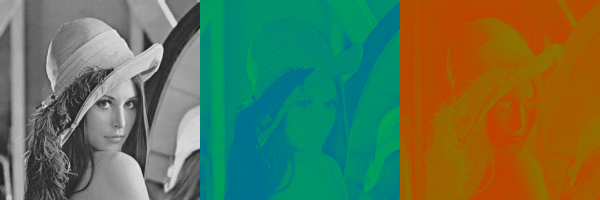

Regarding YUV color decomposition, I've come across 2 different methods of doing this:

1). MATLAB
The code used is here and the output looks identical to the YUV script in the first post.

2). Perl or ImageMagick
This is the Perl script used. There's a comment about this code being wrong but I'm not sure if it was ever fixed or not, there's even a thread how to do this with ImageMagick.
Regardless here's how to do it with AviSynth.

# Source
ImageSource("4.2_04.png", end=0)
ConvertToYV24(matrix="PC.601")
o = last

# Processing
U = UToY8()
V = VToY8()

U2 = U.Invert()
V2 = V.Invert()

Blank = BlankClip(U, color_yuv=$000000)

Y = MergeRGB(o,o,o, pixel_type="RGB24")
U = MergeRGB(Blank, U2, U, pixel_type="RGB24")
V = MergeRGB(V, V2, Blank, pixel_type="RGB24")

UV = StackHorizontal(U,V)

StackHorizontal(Y, UV)

What method do you guys think it's more accurate? IMO I think it's the MATLAB method...

[Gavino]

Originally Posted by Reel.Deel

with ColorYUV(gain_y=-1, cont_u=-1) the output still looks the same as the input.

It should be ColorYUV(gain_y=-256, cont_u=-256)

[cretindesalpes]

Whatever the method, I think the chroma should be scaled according to the luma.

Function decompose_yuv (clip src)
{
	src
	Assert (IsYUV (), "decompose_yuv: clip must be YUV")

	b = last.BlankClip (color_yuv=$808080)
	y = ConvertToY8 ()
	u = UToY8 ()
	v = VToY8 ()
	y2 = IsYV24 () ? y : y.BicubicResize (u.Width (), v.Height ())

	u = mt_lutxy (u, y2, "y 0 >   x 128 - 128 * y / 128 +   x   ?")
	v = mt_lutxy (v, y2, "y 0 >   x 128 - 128 * y / 128 +   x   ?")

	y = YToUV (b.UToY8 (), b.VToY8 (), y)
	u = YToUV (u         , b.VToY8 (), b)
	v = YToUV (b.UToY8 (), v         , b)

	Interleave (y, u, v)
}

[raffriff42]

Originally Posted by Gavino

It should be ColorYUV(gain_y=-256, cont_u=-256)

Use this and never worry about ColorYUV's strange argument scaling again

### transform "normal" float arguments to
### ColorYUV's "gain_x", "gamma_x" & "cont_x" scale
##
function f2cuv(float f) {
    return Round((f - 1.0) * 256.0)
}

/*
# example:
return Subtract(
\  ColorYUV(gain_y=-256, cont_u=-256),
\  ColorYUV(gain_y=f2cuv(0), cont_u=f2cuv(0))
\ )
*/

[Reel.Deel]

Originally Posted by cretindesalpes

Whatever the method, I think the chroma should be scaled according to the luma.

Thanks for the input, with your method the decomposed chroma looks a bit more defined.

If I'm understanding correctly luma and chroma are compared pixel by pixel. If a luma pixel is greater than 0, replace that pixel by ((((x-128)*128)/y)+128) and if not leave the original chroma pixel value.
Regarding mt_lutxy, I understand the concept but how does one really come up with such an expression? Is there a general guideline? What baffles me is how do you know when to add, subtract, etc.? And ultimately how do you know if it's correct or not?

[cretindesalpes]

Originally Posted by Reel.Deel

If I'm understanding correctly luma and chroma are compared pixel by pixel. If a luma pixel is greater than 0, replace that pixel by ((((x-128)*128)/y)+128) and if not leave the original chroma pixel value.

Actually it just means: adjust the contrast of each pixel individually to reach a luma of 128.

The comparison with 0 is just here to avoid to divide by 0.

Because the chroma is centered around 128, we need to shift it to 0 for the scaling with the “-128”, and shift it again after operation with “+128”.

In the expressions, “/y” scales the contrast to unity, and “*128” scales it to the target luma.

For the mt_lut* expression, you have to be familiar with the Reverse Polish Notation. If you’re not, there is a mt_polish() function to convert natural expressions to RPN.
